Description

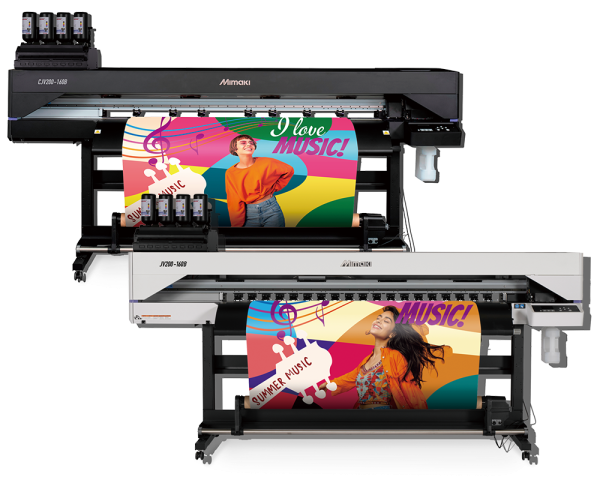

The Mimaki (C)JV200-160B is an integrated eco-solvent print-and-cut system designed for high-volume production environments. Supporting media widths up to 1,620 mm, it combines precision inkjet printing with an integrated cutting carriage, making it ideal for vehicle graphics, window films, banners, and POS displays.
Key Features
- Integrated print-and-cut functionality in a single pass
- Maximum print width: 1,620 mm
- High-speed production mode with multiple print quality options
- Compatible with Mimaki eco-solvent inks (SS22, CS250)
- Mimaki Advanced Pass System 4 (MAPS4) for banding reduction
- Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) for unattended operation
- Variable dot technology for smooth gradients and fine detail
Compatible Inks
- SS22 Eco-Solvent Ink — excellent scratch and weather resistance
- CS250 Eco-Solvent Ink — high colour gamut for demanding applications
Specifications
- Print heads: Piezo heads with variable dot technology
- Max media width: 1,620 mm
- Resolution: up to 1,440 dpi
- Ink configuration: 4–8 colours
- Operating environment: 20–32°C, 35–65% RH
Applications
Vehicle wraps, outdoor banners, retail POS graphics, window and wall graphics, fleet livery — an ideal eco-solvent solution for sign shops and wide-format print service providers across the UAE.
