Description

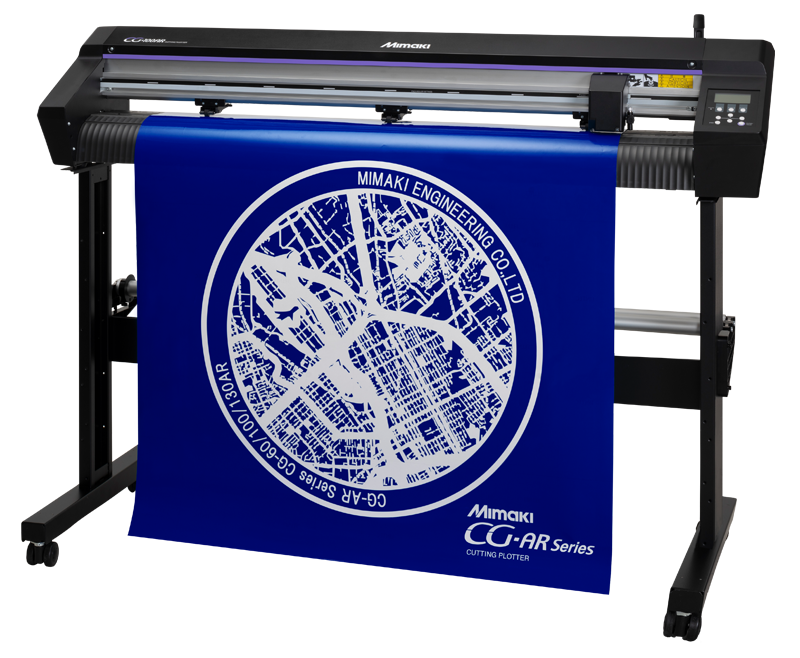

The Mimaki CG-100AR Cutting Plotter is the 1.0 m class Mimaki CG-AR roll cutting plotter supplied by CMYK Digital Solutions for signage, vinyl graphics, stickers, labels, decals and window-film production across the UAE.
Model-Specific Specifications
| Model | CG-100AR |
|---|---|
| Acceptable sheet width | 90 – 1,250 mm (3.5 – 49.2") |
| Effective cutting area | 1,070 mm (42.1") x 51 m |
| Effective repeatability | 1,050 mm x 2 m |
| Maximum cutting speed | 73 cm/s cutting; 103 cm/s moving at 45 degrees |
| Maximum pressure | 550 g |
| Mechanical resolution | X direction: 2.5 um; Y direction: 5 um |
| Interface | USB, RS-232C, Ethernet |
| Dimensions | 1,510 x 580 x 1,160 mm (59.4 x 22.8 x 45.7") |
| Weight | 35 kg (77.2 lb) |
| Stand / basket | Stand included; sheet basket optional |
Key Features
- High-precision roll cutting for vinyl graphics, labels, decals and signage media.
- 550 g cutting pressure for thicker materials and creasing workflows.
- ID Cut support for automated print-and-cut work with compatible Mimaki printers.
- Windows plotter driver support and Mimaki Remote Access compatibility.
Specifications and imagery are based on official Mimaki CG-AR product information: product page and specification page.
