Description
UV Roll to Roll Heavy Duty Printer – Rubber Roller System
Highlight Features:
Design:

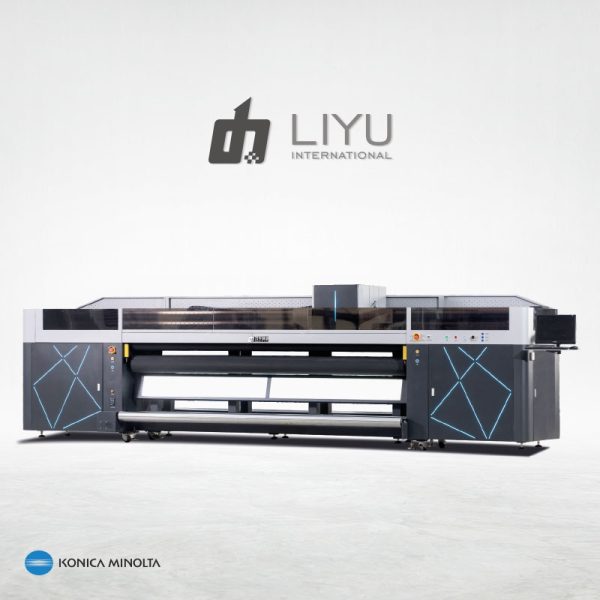

Blockbuster new product in 2019, with cool open type ice blue design and powerful print head configuration, full of mysterious sense of technology, opening a new future of high-speed UV!
Power:
- Three-staggered Konica 1024I ultra-wide configuration, which can easily achieve high-speed UV printing of 120m2 per hour!
- With double staggered Kyocera ultra-clear configuration, UV roll media printing accuracy can be improved to a new realm!
Reliability:

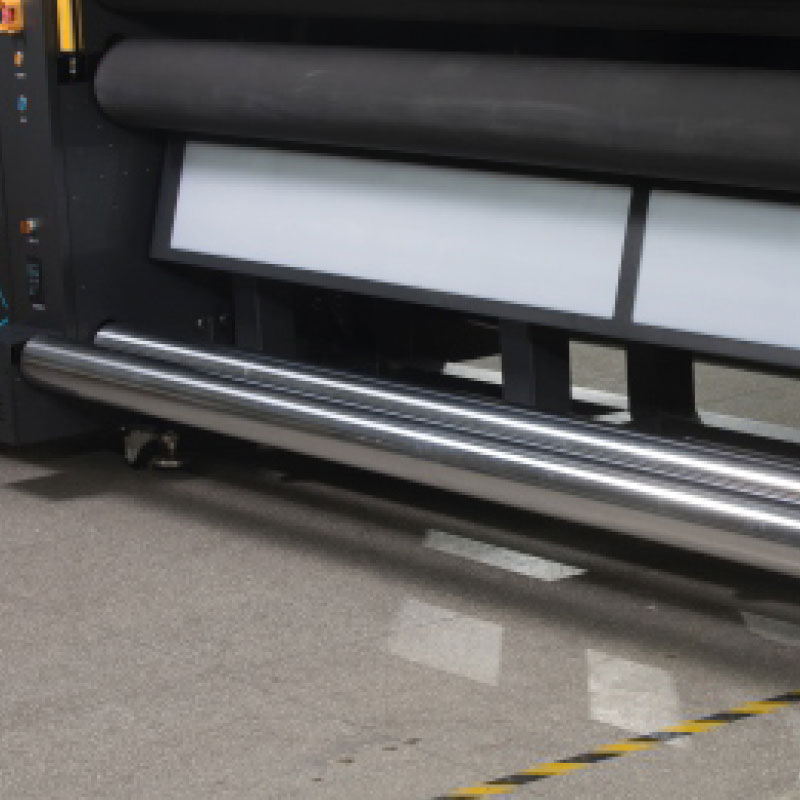

- With 4 rubber rollers of large diameter of 200mm, all kinds of soft and hard materials can be printed smoothly without deviation, which can protect the painted picture and is suitable for mass high-speed printing.
- The whole machine adopts integral welding structure, with super rigidity, and without rack deformation!
Functionality:
- Printing mode for soft and hard materials can be one-key switched, adapting to a variety of UV coiled materials, which can meet various needs of customers!

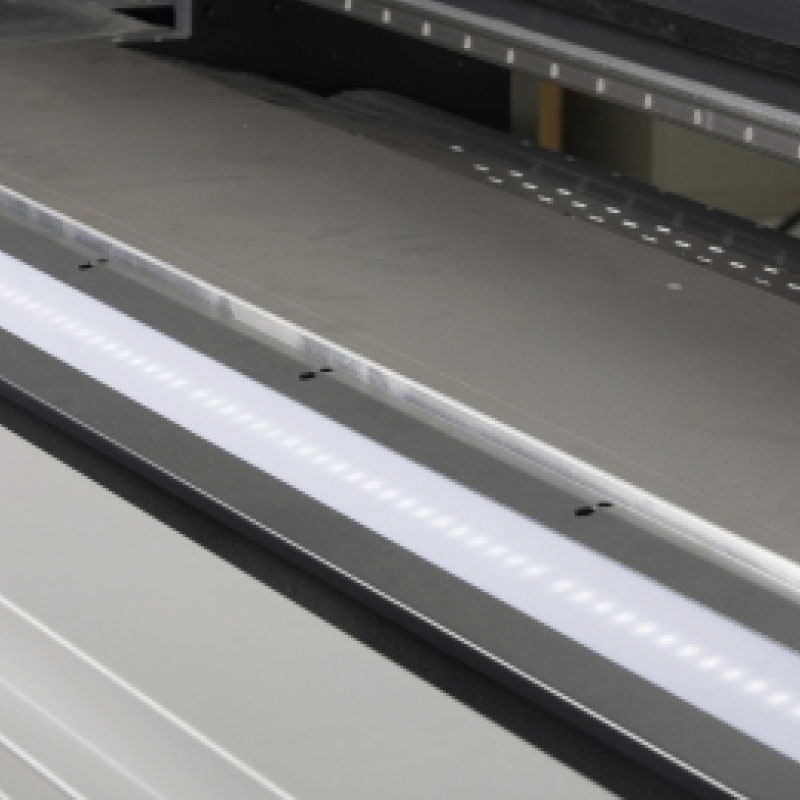

- Water cooling platform of independent control, so do not worry about the material deformation of heat reactive materials due to the heating during UV lamp or ink solidification.
- Frequency conversion fan of printing platform adjusts the suction, which is suitable for different needs of various UV roll media!

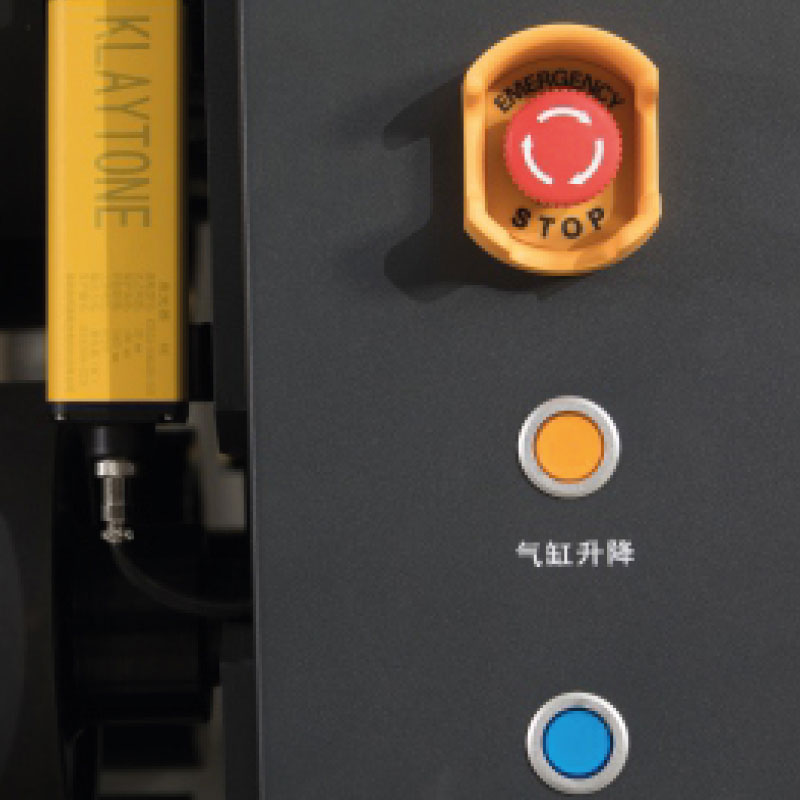

- Configuration of safety light curtain can effectively avoid accidental injuries. And the machine will automatically continue to print after eliminating potential safety hazards!
A high-precision and high-speed print heads supporting the grayscale printing and three rows of print heads; Water-cooled adjustable honeycomb aluminum plate platform; Adjustable holder for the print heads; Four-rubber roll drive system; Destaticizing system; Constant temperature system for the auxiliary ink box; Ink empty alarm for the main ink box; Intelligent anti-pinch screen system; Anti-collision system for carriage; Separated intelligent negative-pressure ink-supply system, THK mute guide, integrated computer console and double -roll take-up and feeding system.
