Description

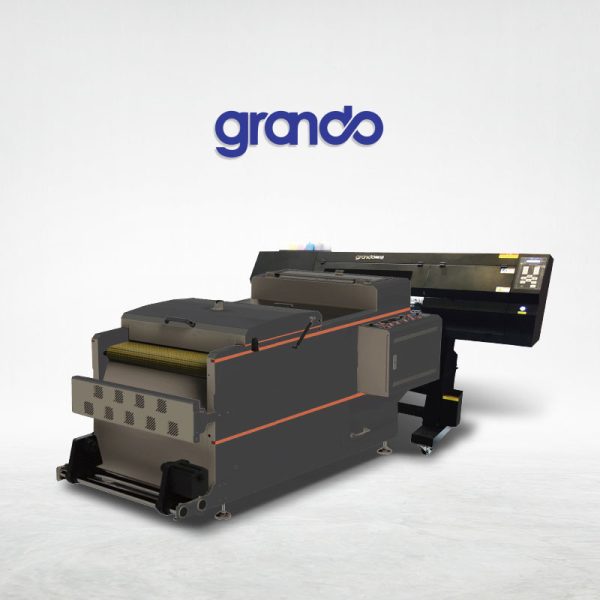

The Grando GD7602 is a professional Direct to Garment (DTG) printer designed for high-quality T-shirt and garment digital printing. Featuring dual Epson I3200 printheads and a continuous ink supply system, the GD7602 delivers vibrant CMYK+White prints directly onto fabric — ideal for custom apparel, promotional merchandise, and on-demand garment printing businesses in UAE, Dubai, and Sharjah.
Key Highlights
- Double I3200 piezoelectric inkjet printheads
- CMYK + White ink — direct to garment printing

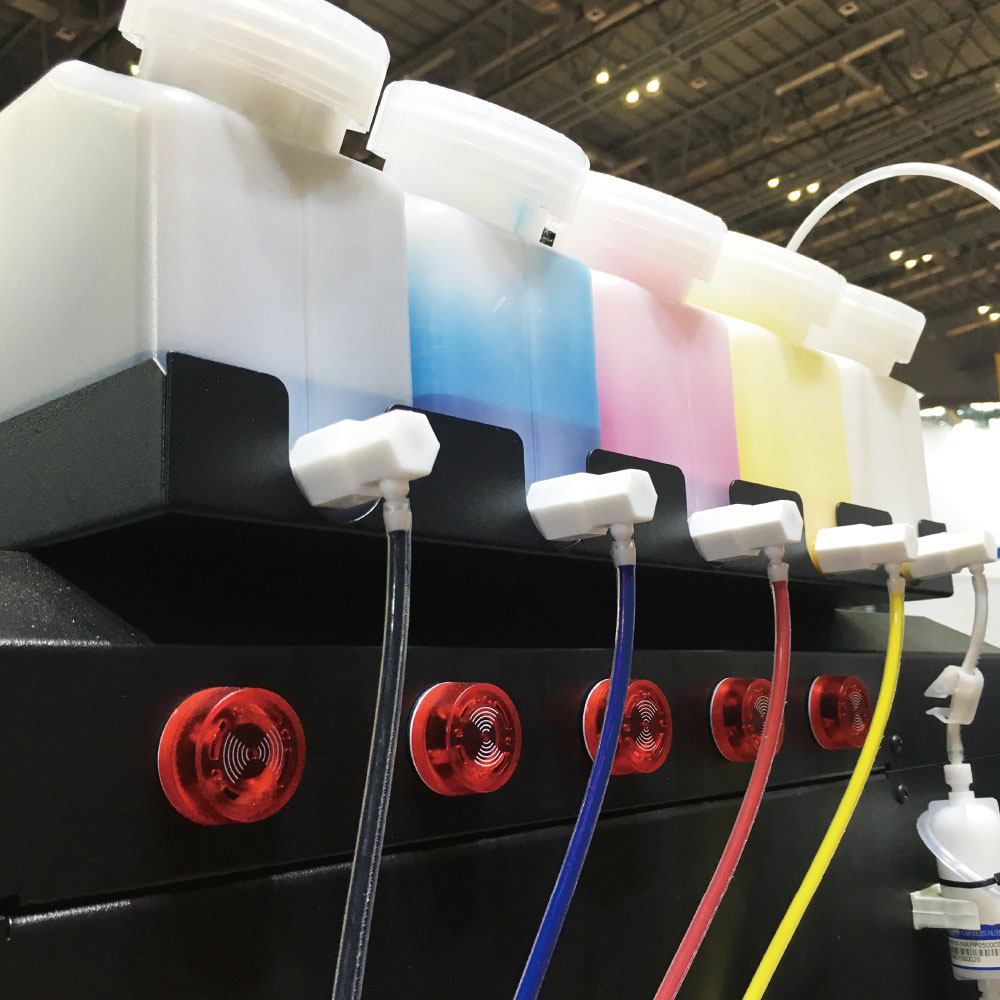

- Continual Ink Supply System (CISS) — 220 ml per colour
- Up to 10 m²/h at 360×1800 dpi (4 Pass)
- Max print width 730 mm — handles standard and oversized T-shirts
- Transfer pigment ink for excellent colour fastness

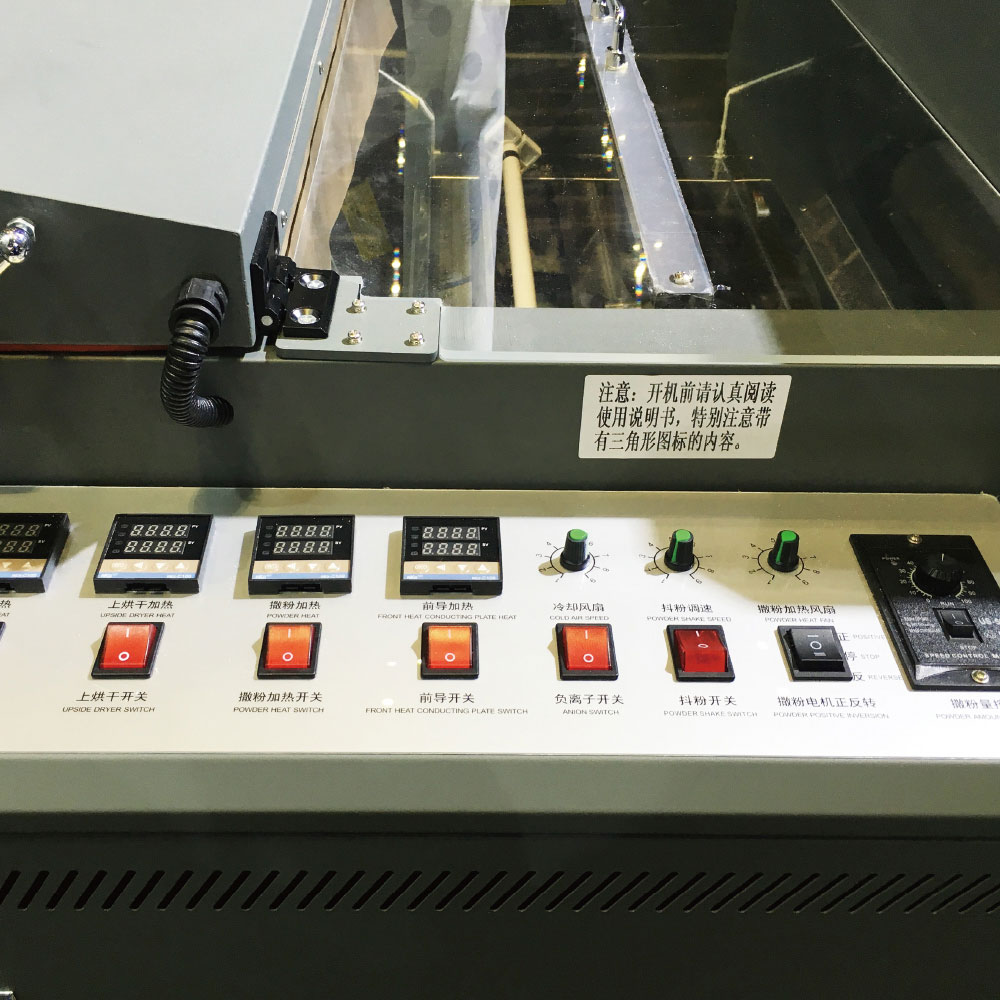

- Powder and colour fixing machine (Media Heating System)
- ICC profile and density curve colour management
- Main Top RIP software included
- Compatible with nylon, cotton, chemical fibre, leather, and more
Specifications
| Specification | Value |
|---|---|
| Print Head | Double I3200 Piezoelectric Inkjet |
| Printing Width | 28.7 in. (730 mm) |
| Acceptable Media Width | Up to 29.9 in. (760 mm) |
| Media Thickness | Maximum 39 mil (1 mm) |
| Ink Type | Transfer Pigment Ink |
| Ink Colours | CMYK + White |
| Ink Supply | Continual Ink Supply System (CISS) — 220 ml |
| Print Speed (4 Pass) | 10 m²/h at 360×1800 dpi |
| Print Speed (6 Pass) | 7 m²/h at 720×1200 dpi |
| Applicable Media | Transfer film |
| Media Heating System | Powder & colour fixing machine |
| Colour Management | ICC profile / density curve |
| RIP Software | Main Top |
| Interface | RJ-45 / LAN |
| Power Supply | 220V / 110V / 10A — 50Hz / 60Hz |
| Operating Temperature | 10°C – 38°C |
| Humidity | 40% – 70% |
| Machine Dimensions | 1800 × 1200 × 1800 mm |
| Machine Weight | 150 kg |
