Description

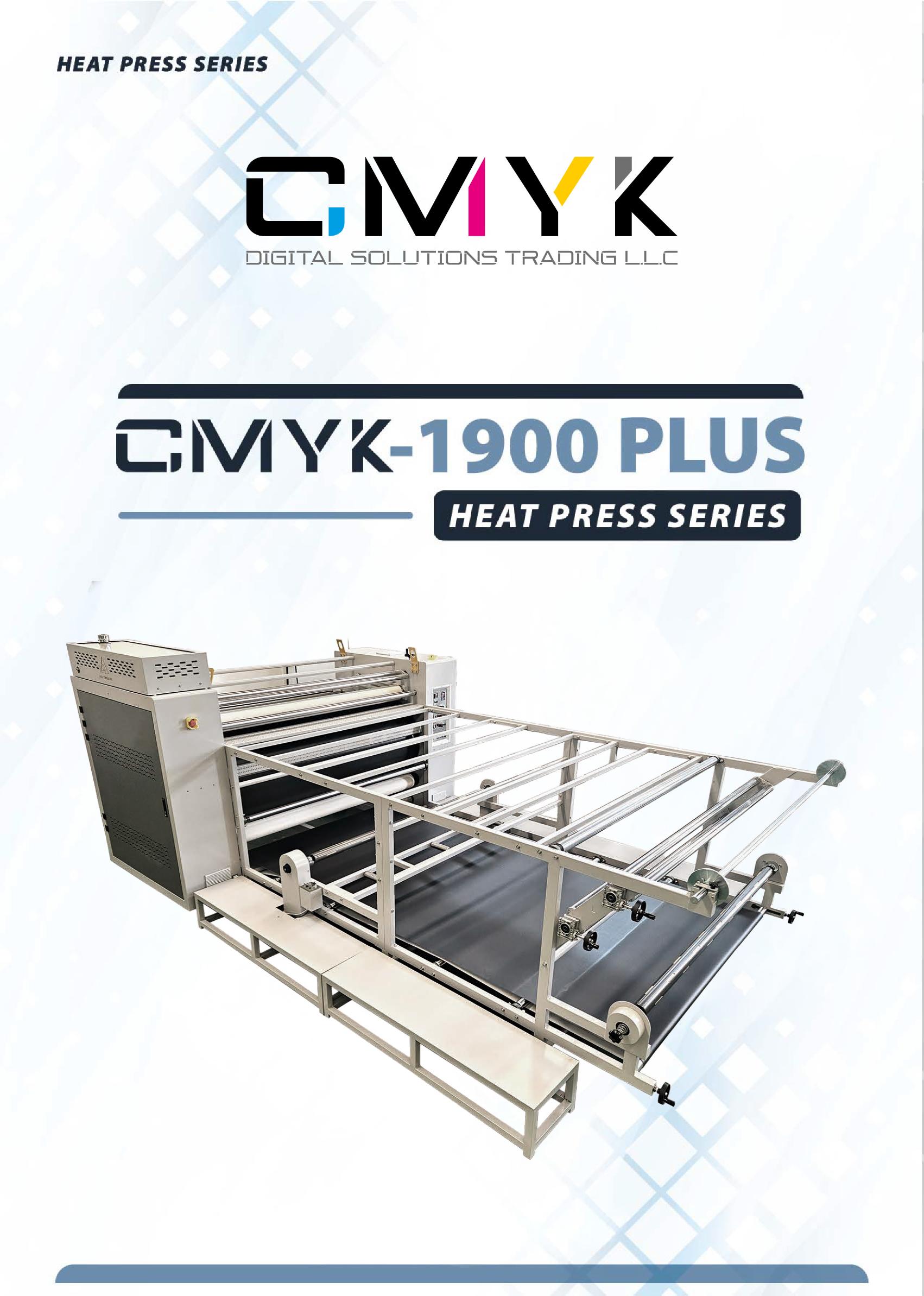

CMYK-1900PLUS Heat Press Series
Wide-format rotary heat transfer calender series for industrial dye-sublimation textile production. External full oil tank, dual sensor blanket protection, automatic blanket offset and maintenance-friendly tooling.
Supplied by CMYK Digital Solutions from Sharjah with installation guidance and after-sales support across the UAE, GCC and Africa. Designed for dye-sublimation transfer paper and polyester-based textiles.
Available configurations

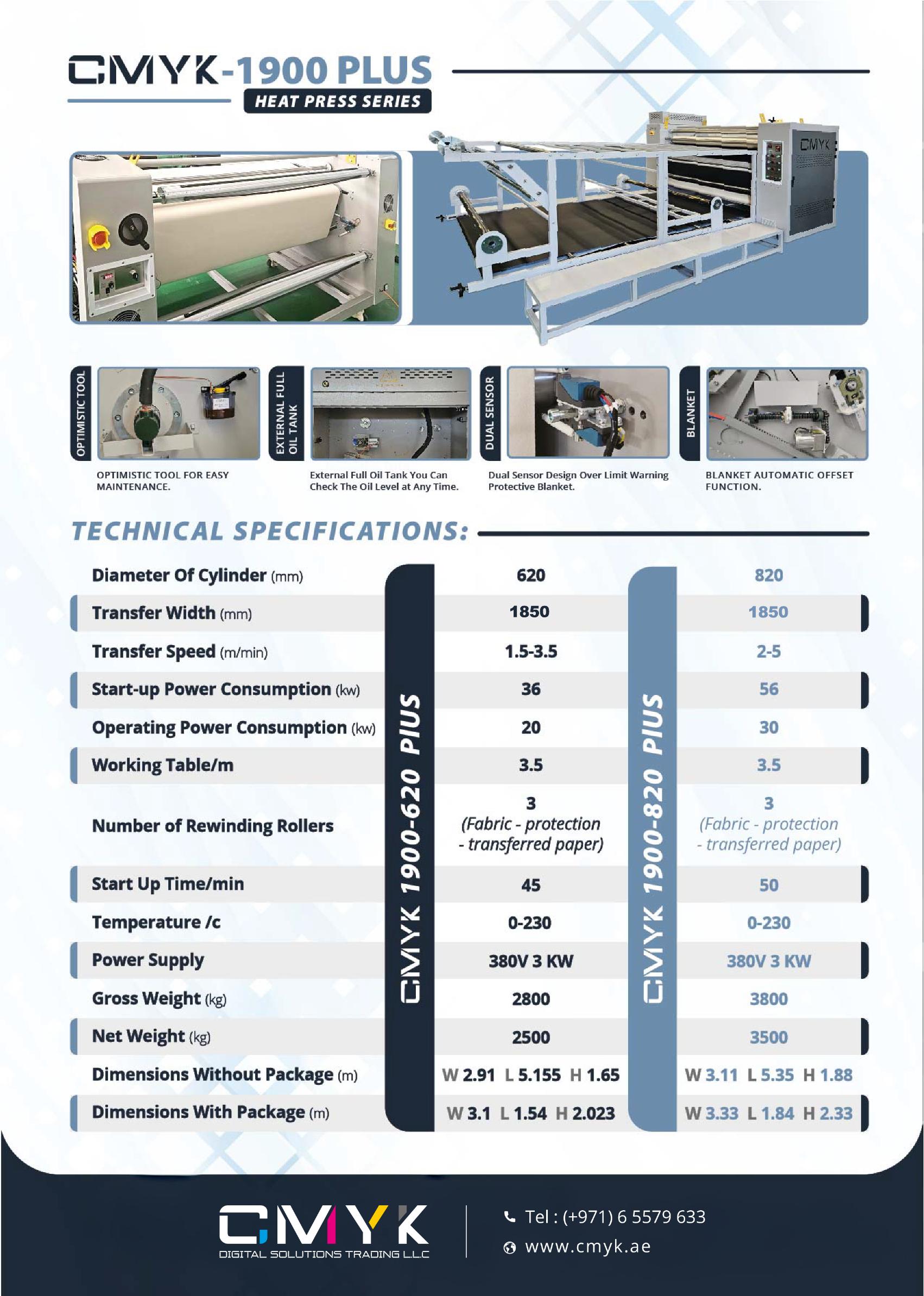

| Specification | CMYK 1900-620 PLUS | CMYK 1900-820 PLUS |
|---|---|---|
| Diameter of cylinder | 620 mm | 820 mm |
| Transfer width | 1850 mm | 1850 mm |
| Transfer speed | 1.5 – 3.5 m/min | 2 – 5 m/min |
| Start-up power consumption | 36 kW | 56 kW |
| Operating power consumption | 20 kW | 30 kW |
| Working table | 3.5 m | 3.5 m |
| Rewinding rollers | 3 (fabric, protection, transferred paper) | 3 (fabric, protection, transferred paper) |
| Start-up time | 45 min | 50 min |
| Temperature | 0 – 230 °C | 0 – 230 °C |
| Power supply | 380V 3 phase | 380V 3 phase |
| Gross weight | 2800 kg | 3800 kg |
| Net weight | 2500 kg | 3500 kg |
Specifications
| Series | CMYK-1900PLUS |
|---|---|
| Transfer width | 1850 mm |
| Configurations | CMYK 1900-620 PLUS / CMYK 1900-820 PLUS |
| Brand | CMYK |
| Supply | CMYK Digital Solutions — UAE, GCC & Africa |
